1200W On Board Charger Wholesale 24v 48v 72v 25a 30a 40a Waterproof Golf Cart Battery Charger

QR code

WeChat

copy Link

Facebook

Line

Product Name Longrun Q2-1200 On Board Charge

Model Number Longrun-Q2-1200

Material Aluminum

Brand Longrun

Email info@longruncs.com

86 19982087153

Reservation Now

DetailReview(0)

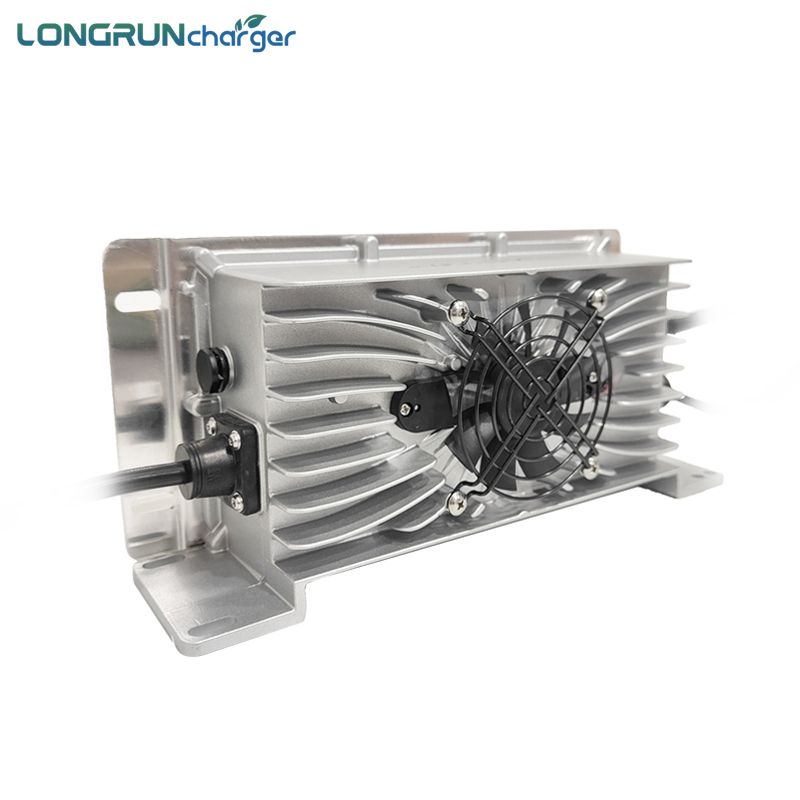

1200W On Board Charger Wholesale 24v 48v 72v 25a 30a 40a Waterproof

Longrun-Q2 Series Input voltage AC 90v-265v,Output voltage DC 12v-440v.

On-board charger standard

1, Input connector（optional）

2, PP and CP signal (need marked)

3, Output connector（optional）

4, Charging indicator(Built -in or External)

5. Anti-walking line

6, Handle (optional)

7, Auxiliary power 12v 3a/5a (optional)

8, CANBUS:Yes (optional)

9, Temperature control sensor module (only for lead acid battery)

Product features

a、 Up to 95% efficiency;

b、 Strong protection function;

c、 Wide range of operating temperatures;

d、 100% full load aging test;

e、Up to IP66 high protection level;

f、 The seismic rating of automobile;

g、 In the process of charging the battery for intelligent temperature compensation to maximize the

battery life.

Technical Parameters
Input		Output
Input Voltage	AC90-264V	Max output current	25a
Input Frequency	40-70HZ	Charge Code	CC-CV
Power Factor	≥0.98	fast charger	Longrun charger
Input Plug	Schuko plug(EU), UK,US,India plug,ZA plug,BR plug, AU plug.....	Output Connector	Andersen 50, M8/10,C13/14,T60/90......
Indicator	Red:Charging
Indicator	Green:Fully Charge
Features	Output over voltage protection Output over current protection Output short circuit protection Output reverse protection Over temperature protection of charger Over temperature protection of battery
