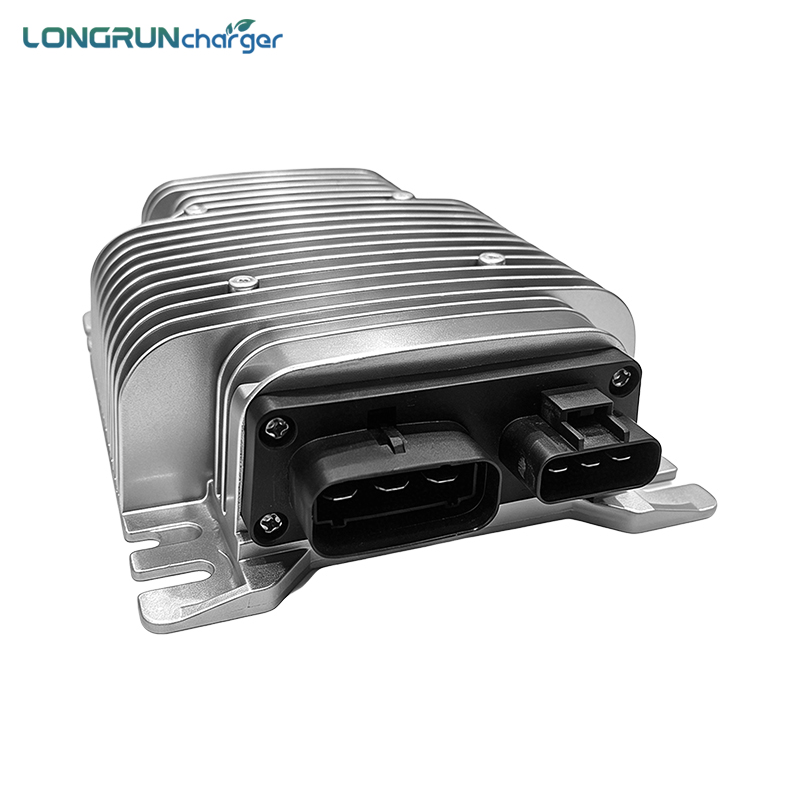

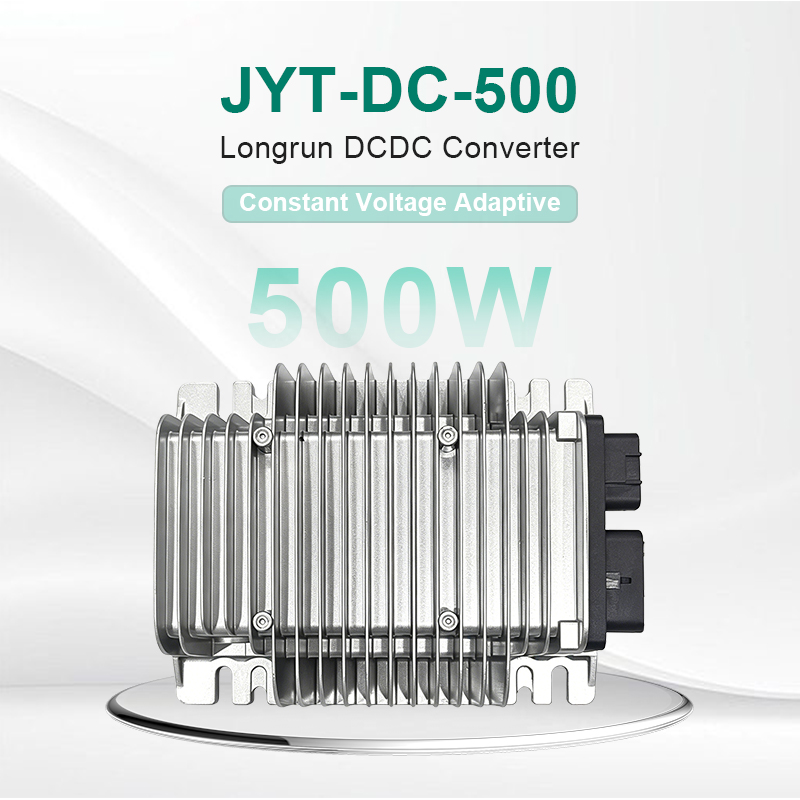

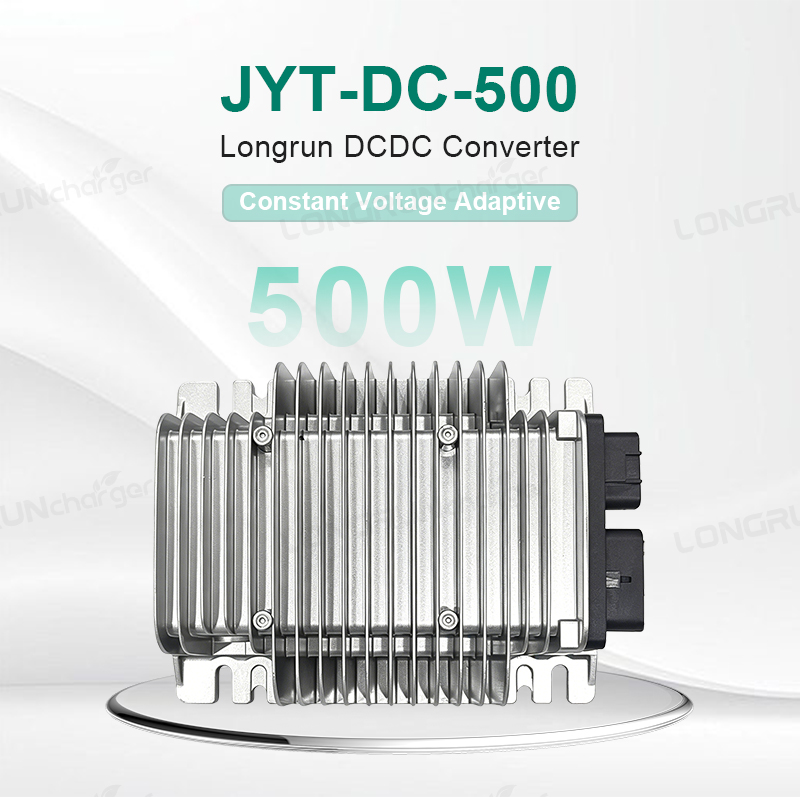

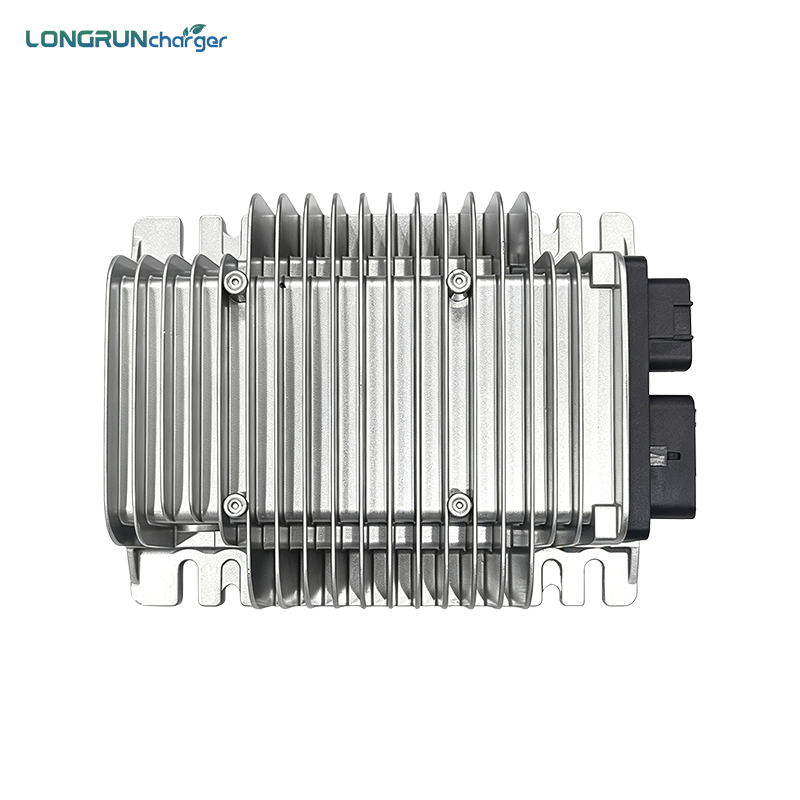

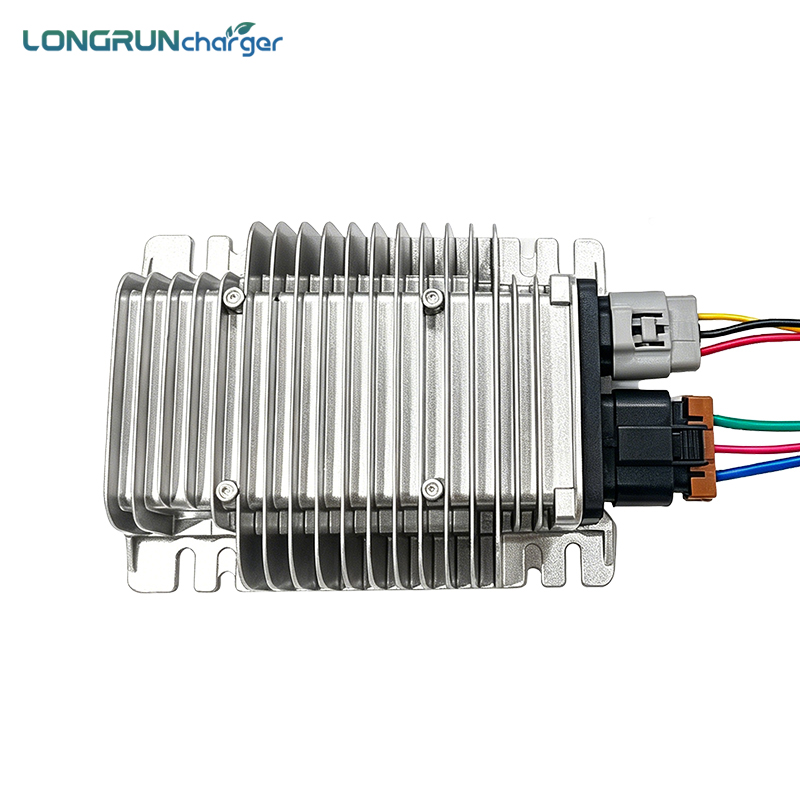

The JYT-DC-500 is a professional-grade 500W isolated DC/DC converter specifically designed for the demanding environments of electric vehicles (EVs). It efficiently converts high battery voltage (40V-98V) to a stable 12V/13.8V low-voltage supply, ensuring your vehicle’s lighting, audio, and control systems operate flawlessly.
1. Ultra-Wide Input Range (40V - 98V)
One unit fits all! Compatible with 48V, 60V, 72V, 80V, and 96V battery systems. Simplify your inventory management with this universal power solution.
2. Full Galvanic Isolation
The isolated circuit design provides a "firewall" between high-voltage batteries and low-voltage electronics, preventing electrical interference and ensuring 100% safety for the vehicle’s control system.

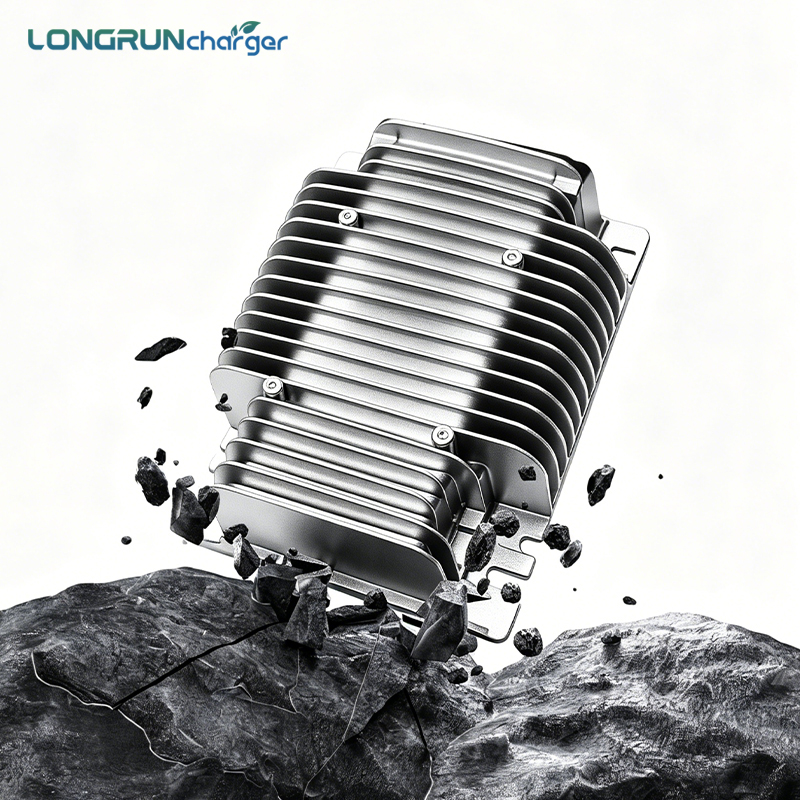

3. IP67 Waterproof & Rugged Design

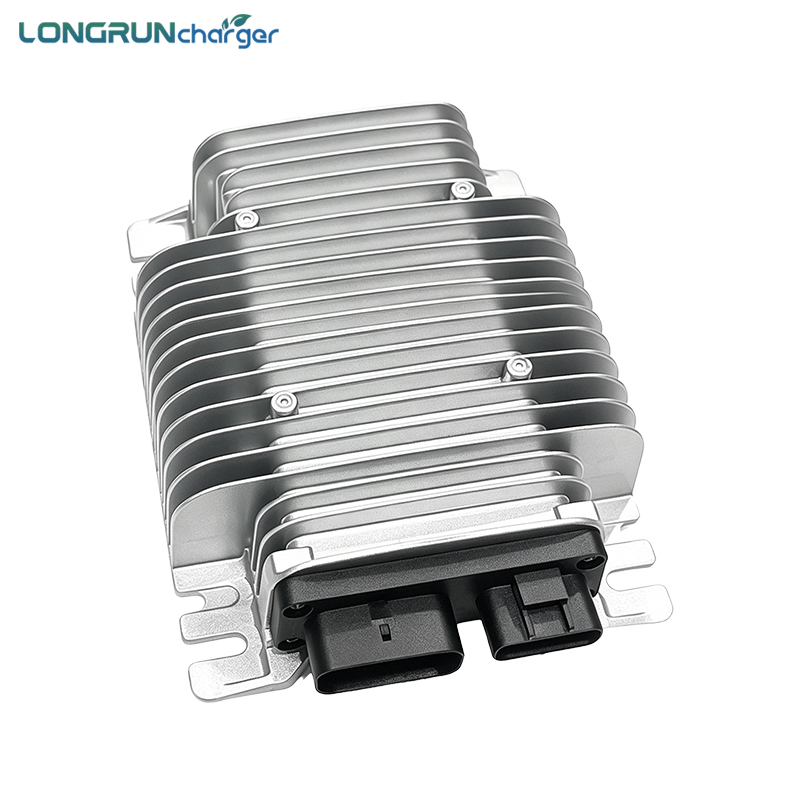

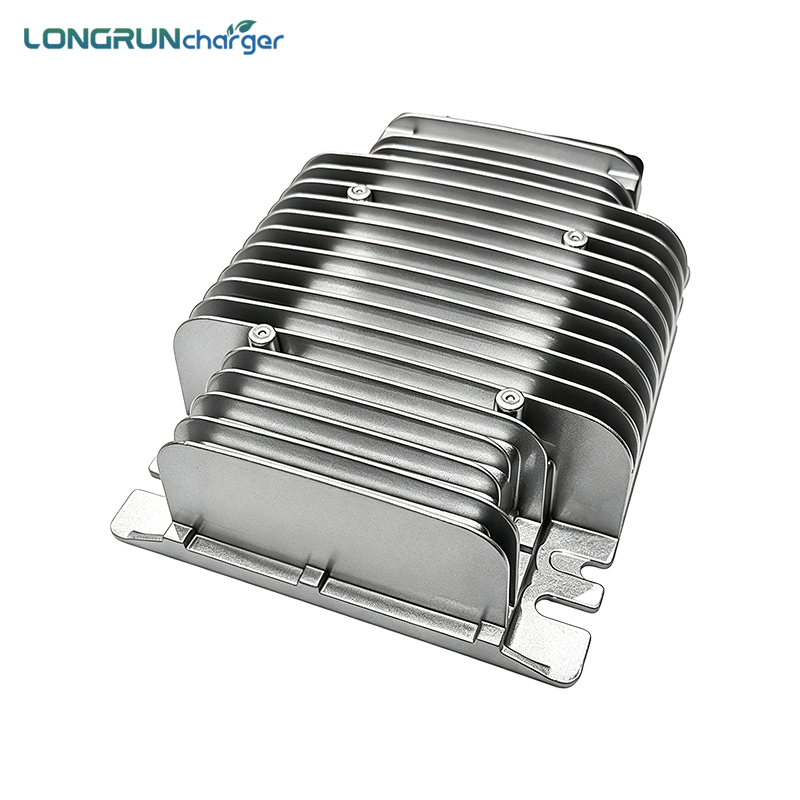

Built with a die-cast aluminum housing and fully encapsulated with thermal epoxy. It is completely dust-tight and can withstand immersion in water, making it perfect for off-road or marine use.
4. High Peak Current (Up to 55A)
While rated at 37A for continuous use, it can handle a peak output of 55A to support high-startup loads like wipers, horns, and LED light bars without voltage drops.
5. 90% High Efficiency & Fanless Cooling
Natural convection cooling means no noisy fans and no mechanical failures. The high-efficiency design reduces heat generation and extends the product lifespan to over 5 years.
ParameterSpecification
Model NumberJYT-DC-500
Input Voltage Range40V - 98V DC
Rated Output Voltage13.8V DC (±0.2V)
Rated Output Power500W
Rated Output Current37A
Peak Output Current55A
Efficiency≥ 88% (Typical 90%)
Protection RatingIP67 (Waterproof & Dustproof)
Isolation Resistance≥ 20MΩ
Operating Temperature-40°C to +60°C
Cooling MethodNatural Convection (Fanless)
