Product Name Longrun Q2-2000 Motorcycle ZERO DS charger 72v18a 72v25a Batteries Charger

Model Number Longrun-Q2-2000

Material Aluminum

Brand Longrun

Email info@longruncs.com

86 19982087153

Reservation Now

DetailReview(0)

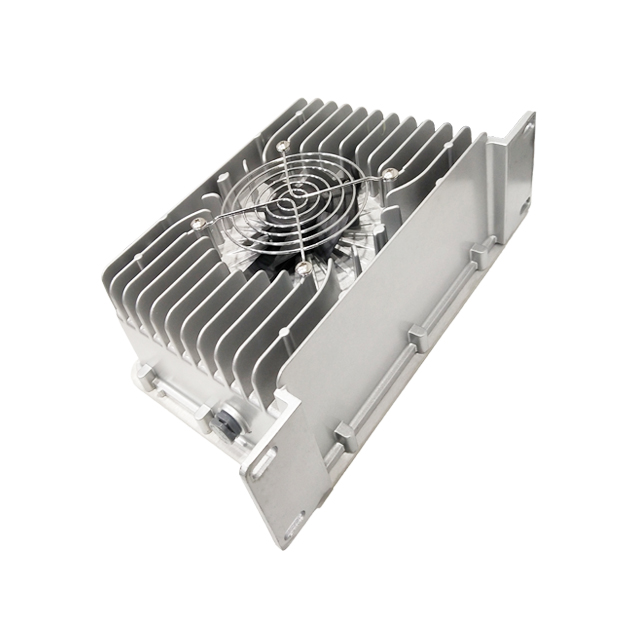

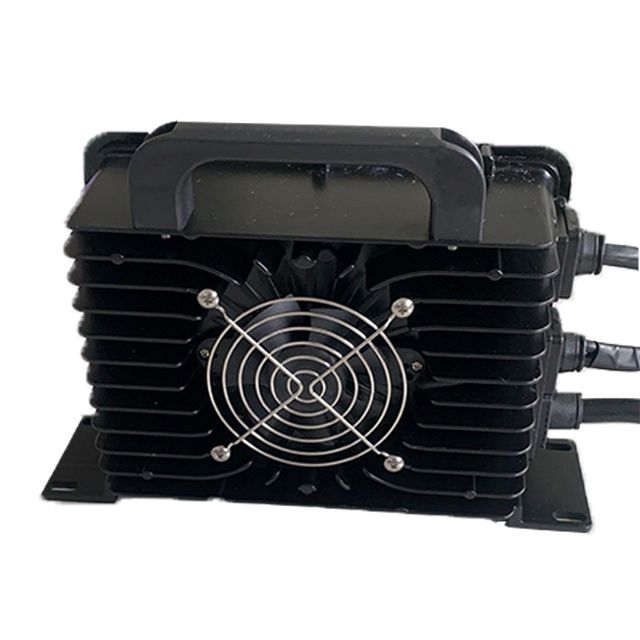

Longrun Q2-2KW 36V 48V 72V Electric Motorcycle On Board Charger

Longrun-Q2 Series Input voltage AC 90v-265v,Output voltage DC 12v-440v.

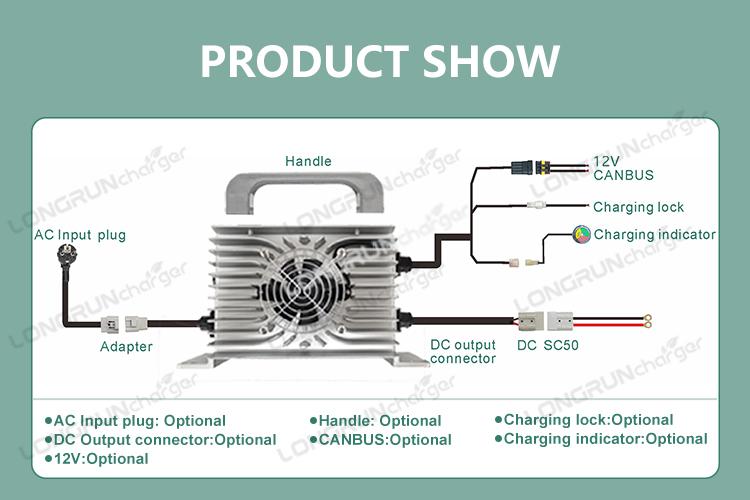

On-board charger standard

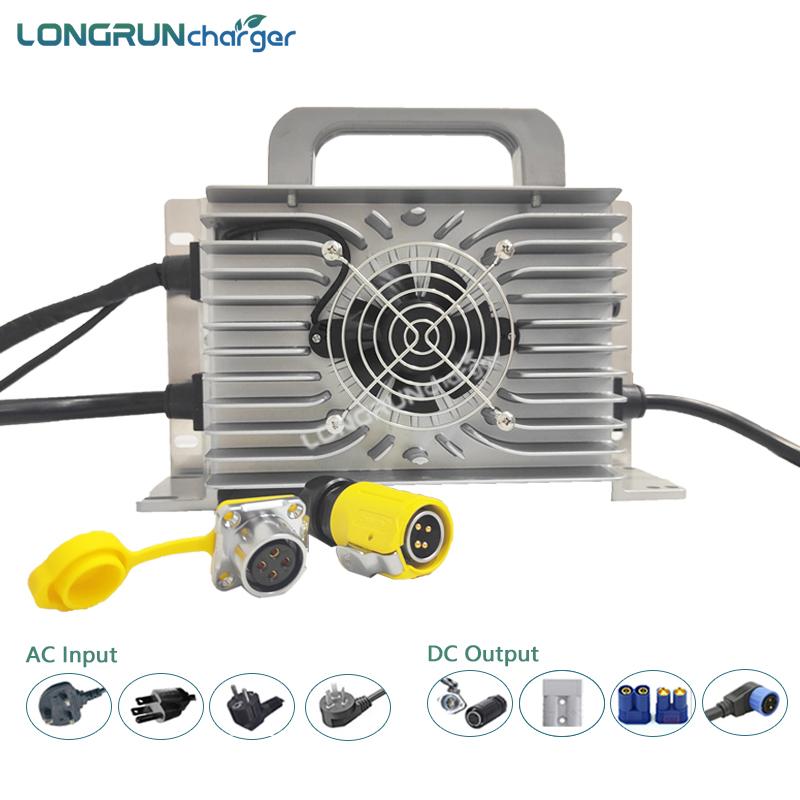

1, Input connector（optional）

2, PP and CP signal (need marked)

3, Output connector（optional）

4, Charging indicator(Built -in or External)

5. Anti-walking line

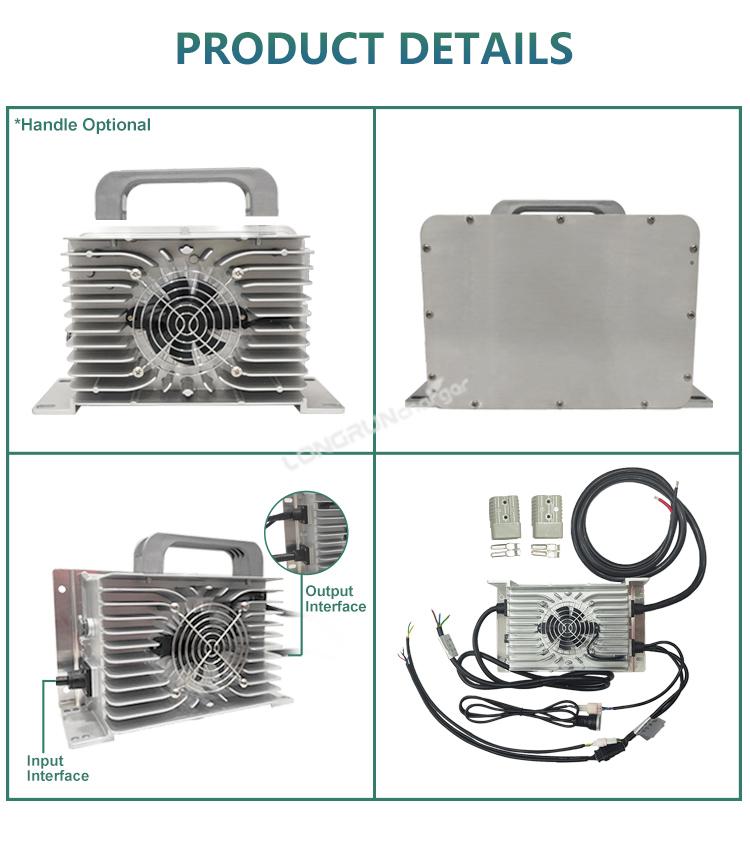

6, Handle (optional)

7, Auxiliary power 12v 3a/5a (optional)

8, CANBUS:Yes (optional)

9, Temperature control sensor module (only for lead acid battery)

Technical Parameters
Input		Output
Input Voltage	90-264v(220v/110v)	Max Output Current（a）	40a
Input Frequency	40-70HZ	Charge Code	CC-CV
Power Factor	≥0.98	Efficiency	≥93
Plug	Schuko plug(EU), UK,US,India plug,ZA plug,BR plug, AU plug.....	Connector	Andersen 50, M8/10,C13/14,T60/90......
Indicator	Red:Charging
	Green:Fully Charge
Features	IP 66 Waterproof/shockproof Onboard/Off board Fast Charging
Application	For Battery: 24V/36V/48V LiFePO4 Charger, 60V/72V/84V Li-ion Charger,20S NMC Charger, 48V/60V/72V Lead acid Charger,LTO Charger For Electric Vehicle: 24v30a AGV Charger 48v25a Golf Cart Charger 48v20a Golf Cart Charger 72v18a Motorcycle Charger 84v Motorcycle Charger

Product features

a、 Up to 95% efficiency;

b、 Strong protection function;

c、 Wide range of operating temperatures;

d、 100% full load aging test;

e、Up to IP66 high protection level;

f、 The seismic rating of automobile;

g、 In the process of charging the battery for intelligent temperature compensation to maximize

the battery life.


Input	Frequency rate	45-65Hz
Input	Standby power consumption	≤ 5W
Main output	Output type	Constant pressure/current
	Output power	800w 1500w 2000w 3300W 6600W 9900w 13kw
	CV Accuracy	±1%
	CC Accuracy	±1%
	Ripple voltage coefficient	5%
Low voltage output	Output type	CV
	Output voltage	13.8V
	Rated current	5A
	Precision of constant voltage	±2%
	Max current	5.5A±0.5A
	Output power	≥ 62.5W
	Ripple voltage coefficient	1%
CAN Communication	CAN communication	Optional
	Baud rate	125Kbps、250Kbps、500Kbps
	Terminating resistor	No
