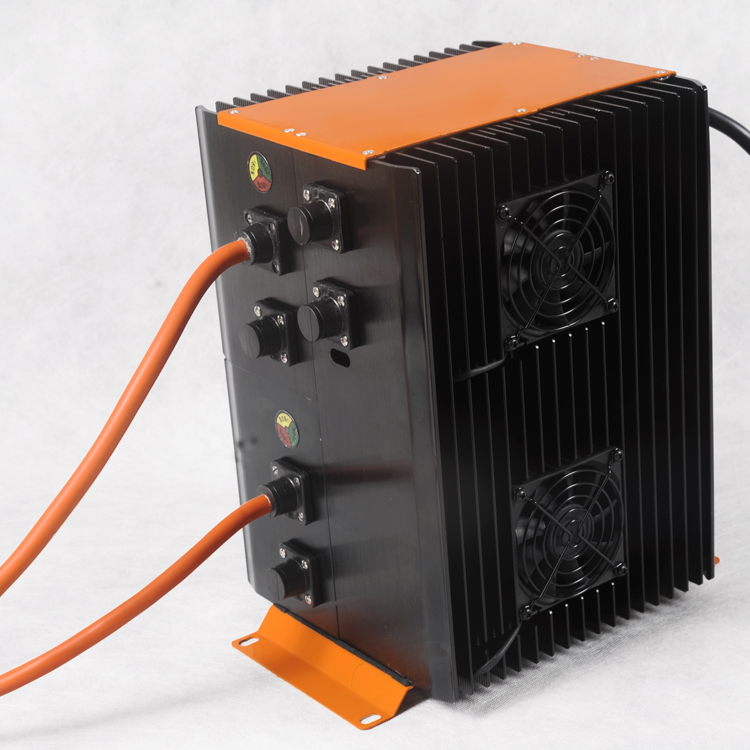

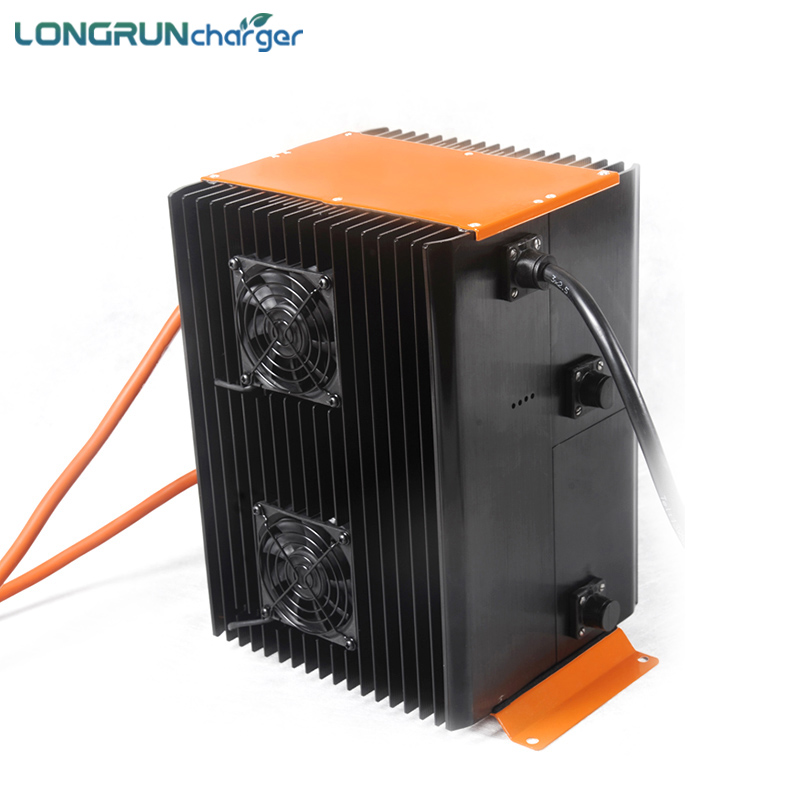

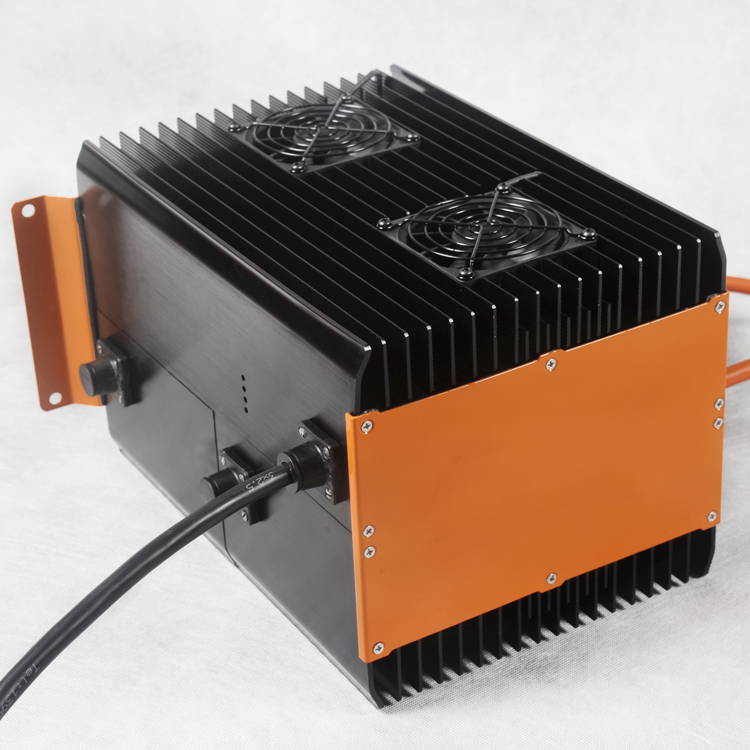

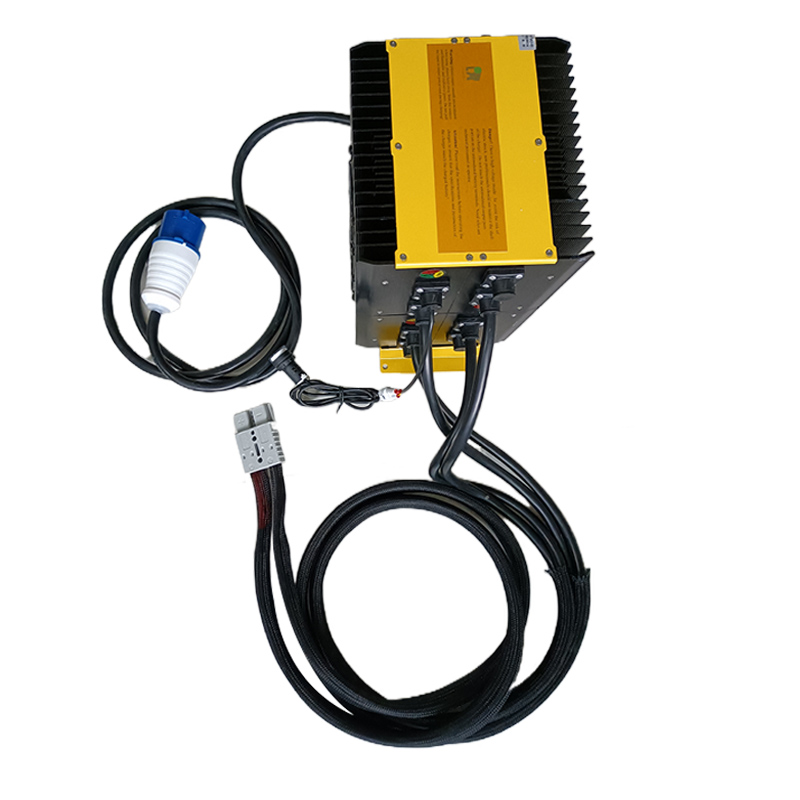

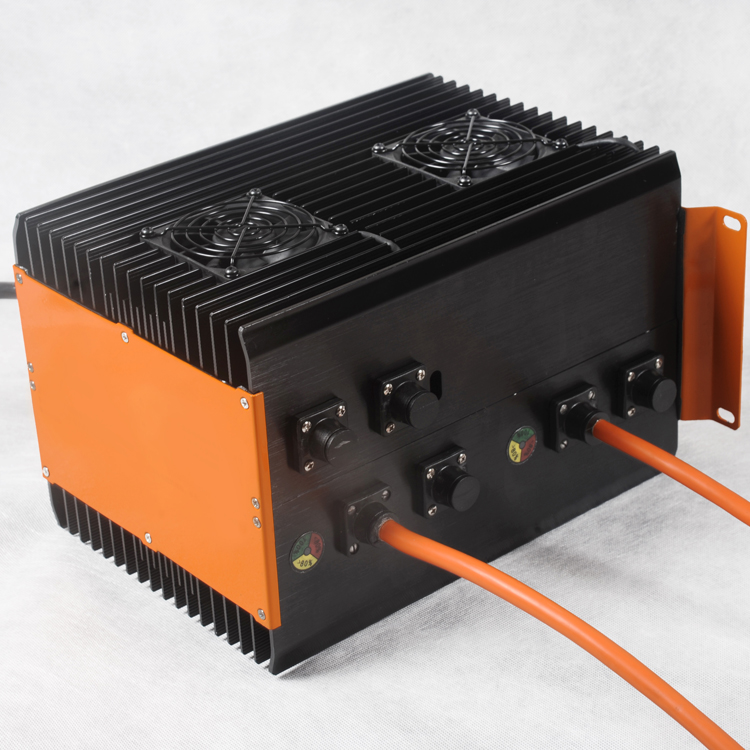

Longrun OBC Q1-8000 72v 80v 90-120v Lifepo4 Lead Acid Battery ON Board Charger

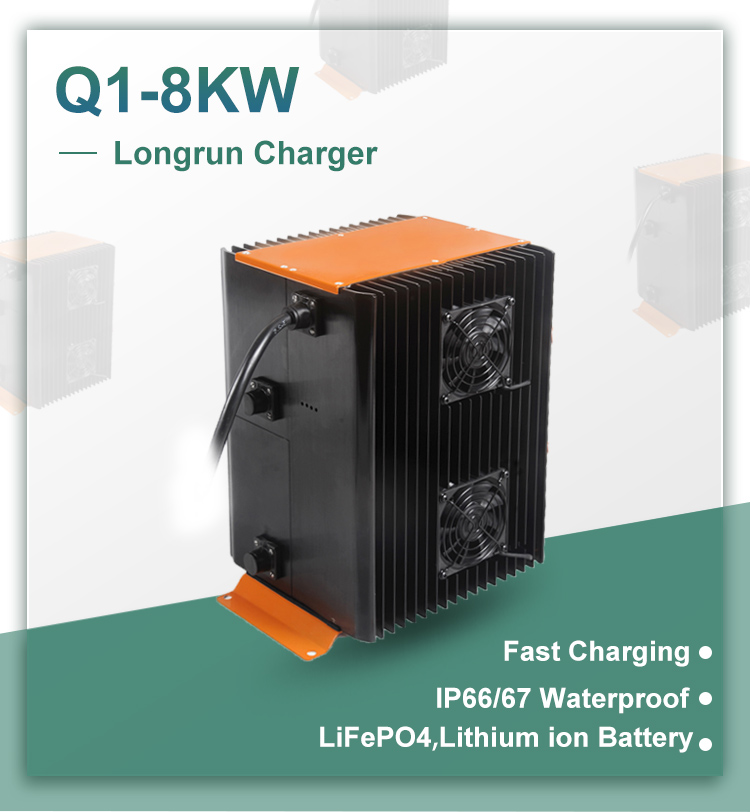

Longrun OBC Q1-8KW 72v 80v 90-120v Lifepo4 Lead Acid Battery ON Board Charger
Longrun-Q1 Series Input voltage AC 220v ± 15%,Output voltage DC 12v-120v.
Longrun-Q1系列输入电压交流 220v ± 15%，输出电压直流12v-120v。
On-board charger standard 车载充电机标准：

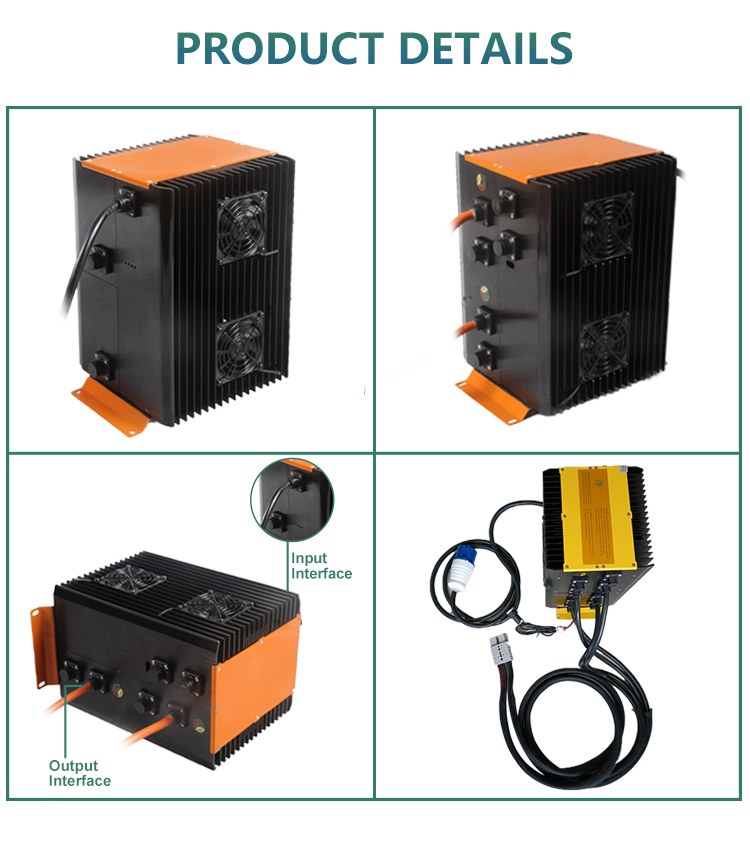

1, Input connector（optional）输入接头 (选配）
2, PP and CP signal (need marked) PP和CP信号线（需注明）
3, Output connector（optional）输出接头 (选配）
4, Charging indicator(Built -in or External) 充电指示灯（内置或外接）
5. Anti-walking line 防行走线
6, Handle (optional) 手柄 (选配）
7, Auxiliary power 12v 3a/5a (optional) 辅助电源12v 3a/5a (选配）
8, CANBUS:Not 不带CAN通讯
9, Temperature control sensor module (only for lead acid battery) 温控传感（只用于铅酸电池）
Q1-8KW Input ≤50a 12v3a Optional | |||
| Rated Voltage(v) | Battery Type(Strings) | Max Output Current(a) | Others |

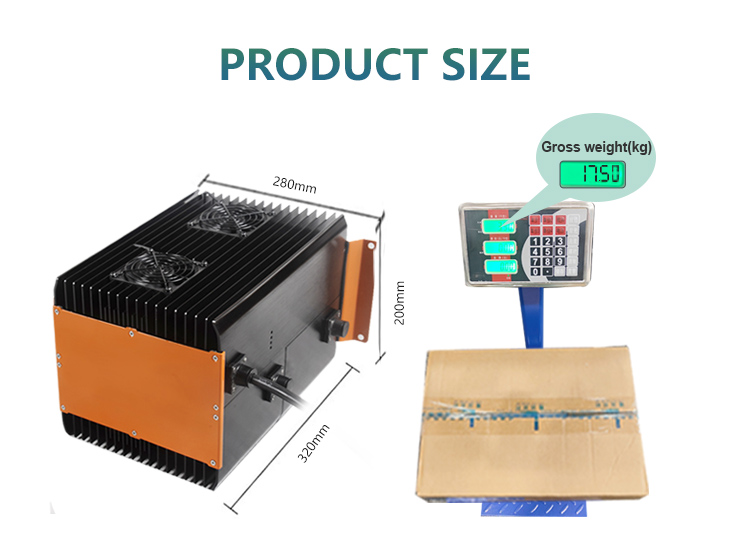

| 12/24 | Lead acid Li-ion LifePo4 | 160 | Size:320x280x200cm |
| 36/48/60 | 120 | ||
| 72v | 100 | ||
| 80/84 | 80 | Net Weight:16kg | |
| 96-120 | 72 | ||
Product features
a、 Up to 95% efficiency;
b、 Strong protection function;
c、 Wide range of operating temperatures;
d、 100% full load aging test;
e、Up to IP66 high protection level;
f、 The seismic rating of automobile;
g、 In the process of charging the battery for intelligent temperature compensation to maximize the battery life
Protection features
Output over voltage protection
Output over current protection
Output short circuit protection
Output reverse protection
Over temperature protection of charger
Over temperature protection of battery
Product work curve and performance
The lithium battery charging curves:
The Lead acid batteries have different charging curves according to different battery brands and types.

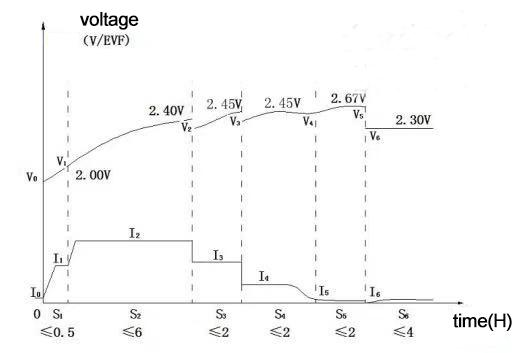

Typical battery charging curve diagram:
More Details Please Free Let me Know
