Longrun Q2-3300 48V 72V 144V 312V Lifepo4 Lithium Onboard Charger

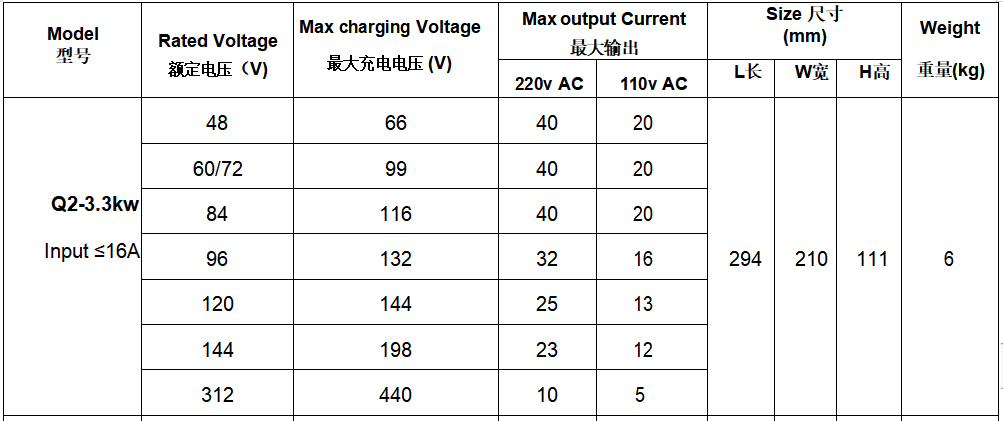

LONGRUN Q2-3.3KW 36V 48V 72V HIGH AMPERE LIFEPO4 ON BOARD CHARGER
Longrun-Q2 Series Input voltage AC 90v-265v,Output voltage DC 12v-440v.

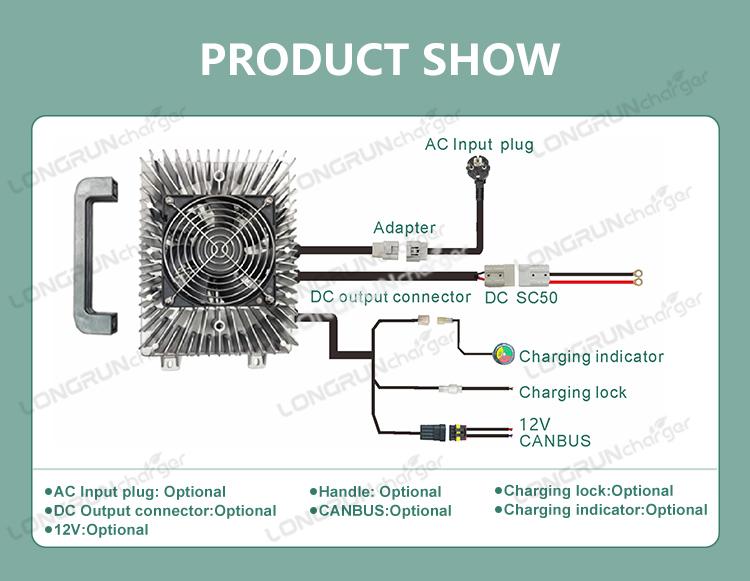

On-board charger standard

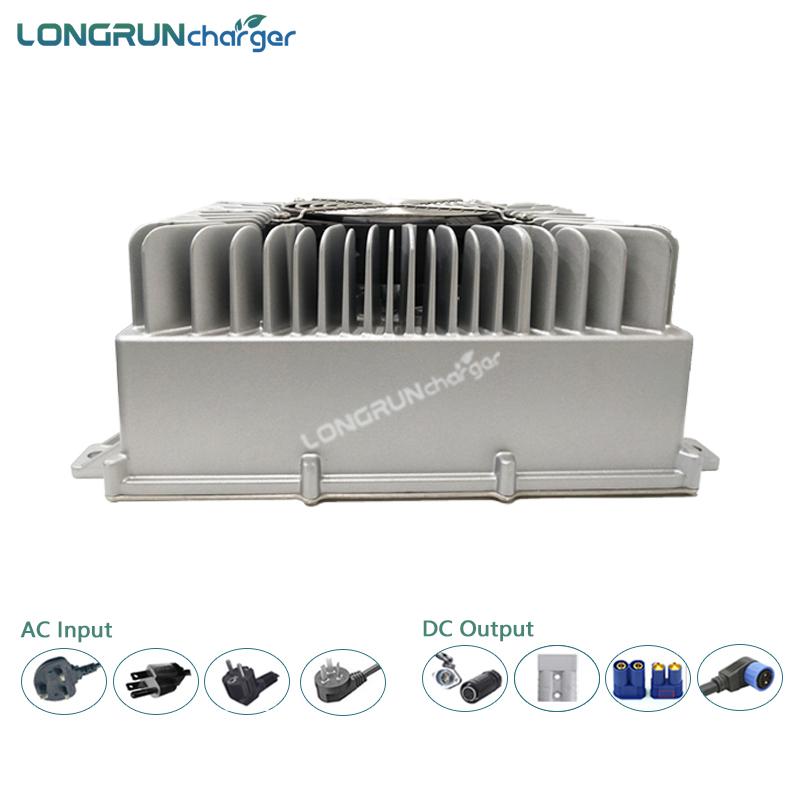

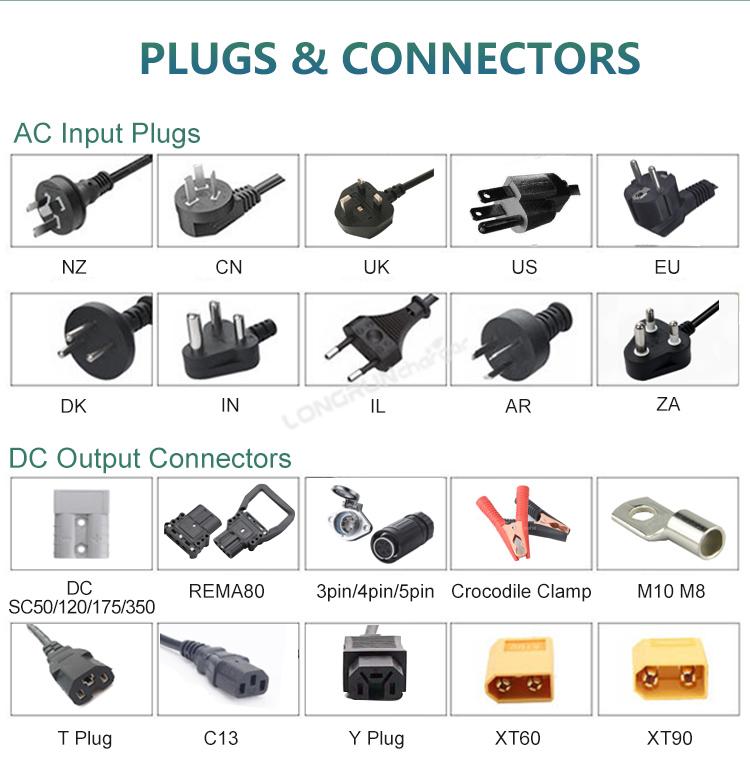

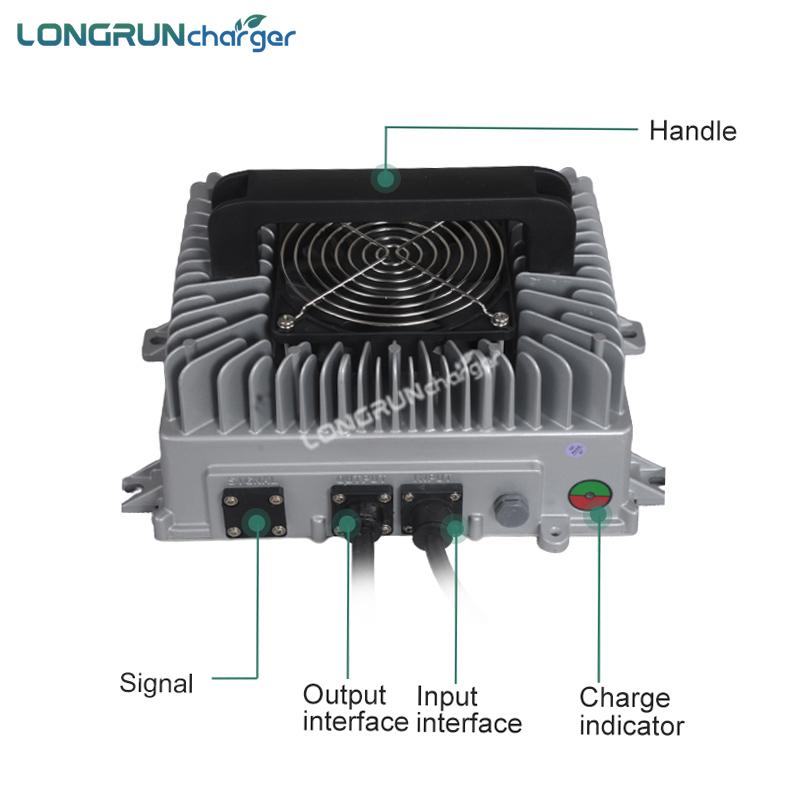

1, Input connector（optional）
2, PP and CP signal (need marked)
3, Output connector（optional）
4, Charging indicator(Built -in or External)
5. Anti-walking line

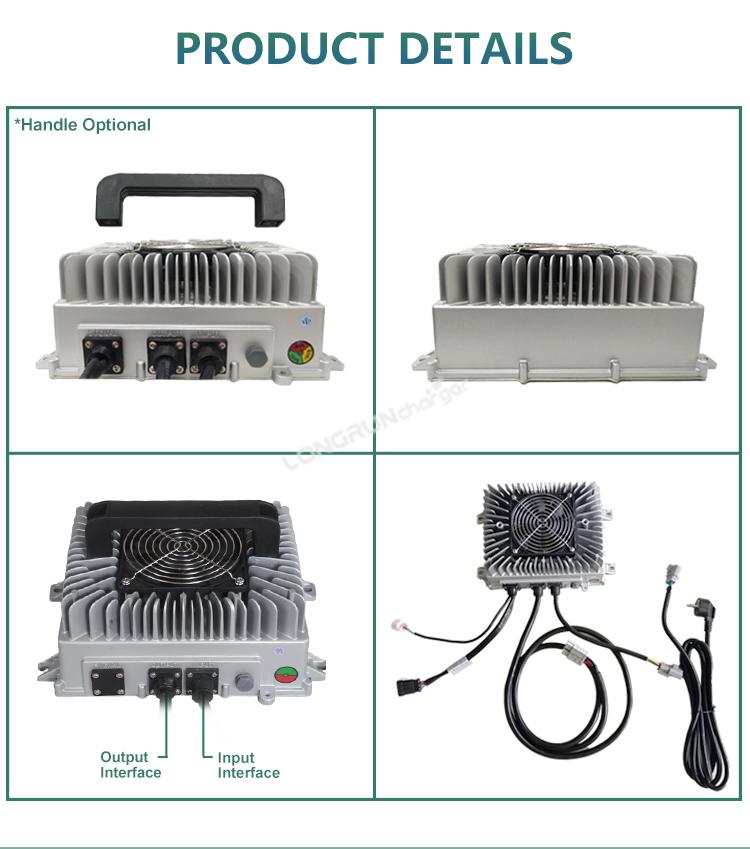

6, Handle (optional)
7, Auxiliary power 12v 3a/5a (optional)
8, CANBUS:Yes (optional)
9, Temperature control sensor module (only for lead acid battery)
Product features
a、 Up to 95% efficiency;
b、 Strong protection function;
c、 Wide range of operating temperatures;
d、 100% full load aging test;
e、Up to IP66 high protection level;
f、 The seismic rating of automobile;
g、 In the process of charging the battery for intelligent temperature compensation to maximize
th battery life.
Input | Frequency rate | 45-65Hz |
Standby power consumption | ≤ 5W | |
Main output | Output type | Constant pressure/current |
Output power | 800w 1500w 2000w 3300W 6600W 9900w 13kw | |
CV Accuracy | ±1% | |
CC Accuracy | ±1% | |
Ripple voltage coefficient | 5% | |
Low voltage output | Output type | CV |
Output voltage | 13.8V | |
Rated current | 5A | |
Precision of constant voltage | ±2% | |
Max current | 5.5A±0.5A | |
Output power | ≥ 62.5W | |
Ripple voltage coefficient | 1% | |
CAN Communication | CAN communication | Optional |
Baud rate | 125Kbps、250Kbps、500Kbps | |
Terminating resistor | No |
